TRANSFORMER PROTECTOR (TP)

The sole proven solution to prevent transformers explosions and fire.

The TRANSFORMER PROTECTOR operates as a passive mechanical system, triggered by the First Dynamic Pressure Peak originating from any low impedance fault. Suitable for both new and existing transformers, ranging from 0.1 MVA to 1,000 MVA and beyond, the TRANSFORMER PROTECTOR is versatile in its application.

Featuring various protection configurations tailored to transformer design and customer technical specifications, Transformer Protector Corp. provides a high-performing, cost-effective, and compatible solution. The emphasis is on facilitating ease of implementation without disrupting the existing transformer design.

product highlights

Avoid outages and extensive disruptions

Prepare transformers and the grid for a better recovery plan from large-scale cyberattacks

Enhance safety, reduce downtime, and enable quicker restarts after incidents

Prevent environmental damage

Mitigate financial risks while ensuring a more reliable and stable power supply and production outcome

Avoid fines and authorities’ investigations on-site, fostering smooth relations with surrounding communities

Organize your grid and transformers fleet for an ever-growing power demand

Facilitate faster transformer repair, potentially on-site

The TRANSFORMER PROTECTOR guarantees a reliable power supply. Through its mechanical operation, it upgrades safety of transformers during cyberattacks, enhancing the resilience and robustness of the energy grid. Resilience entails the ability to withstand disasters, while robustness allows adaptation to evolving energy sources.

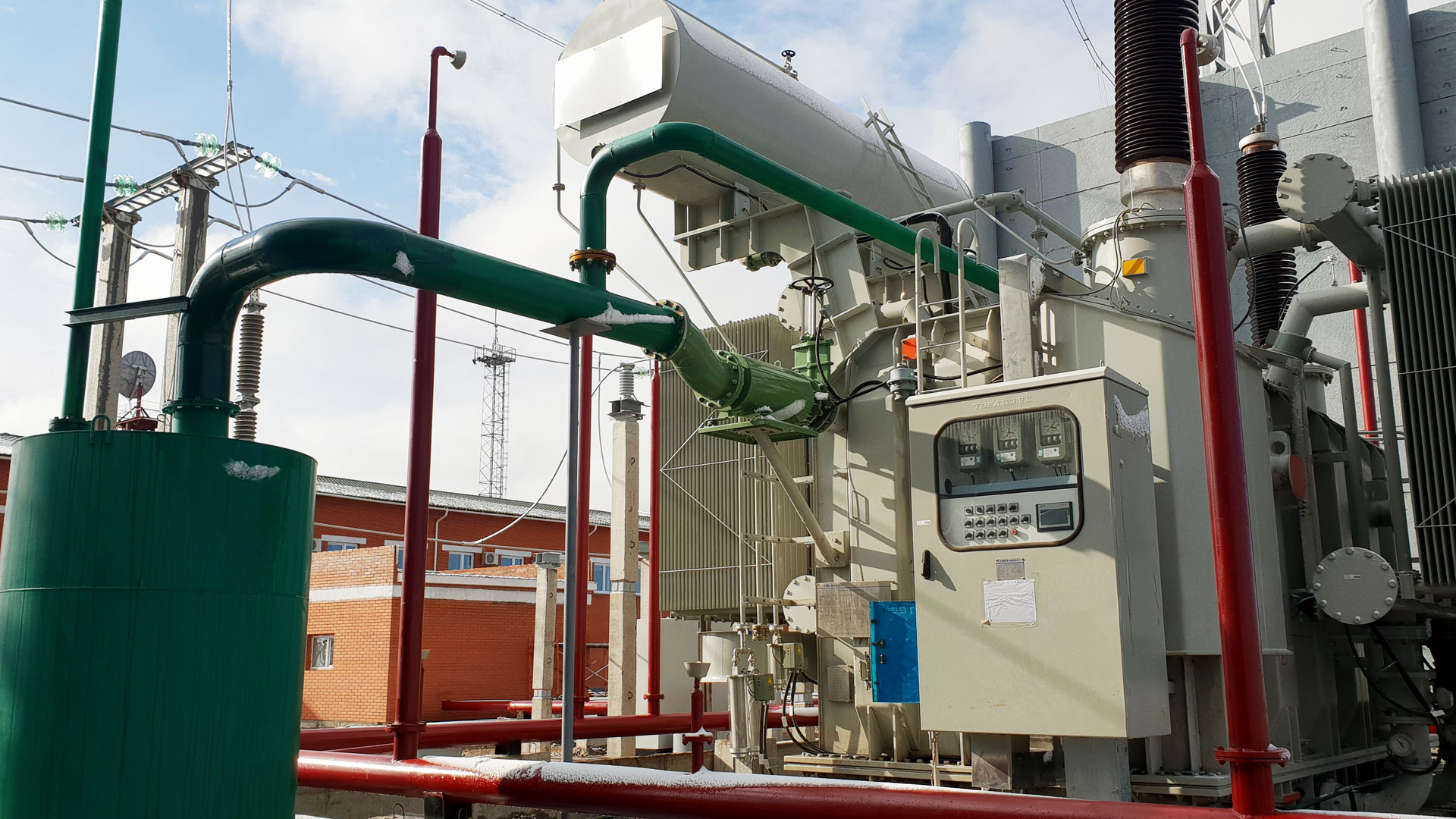

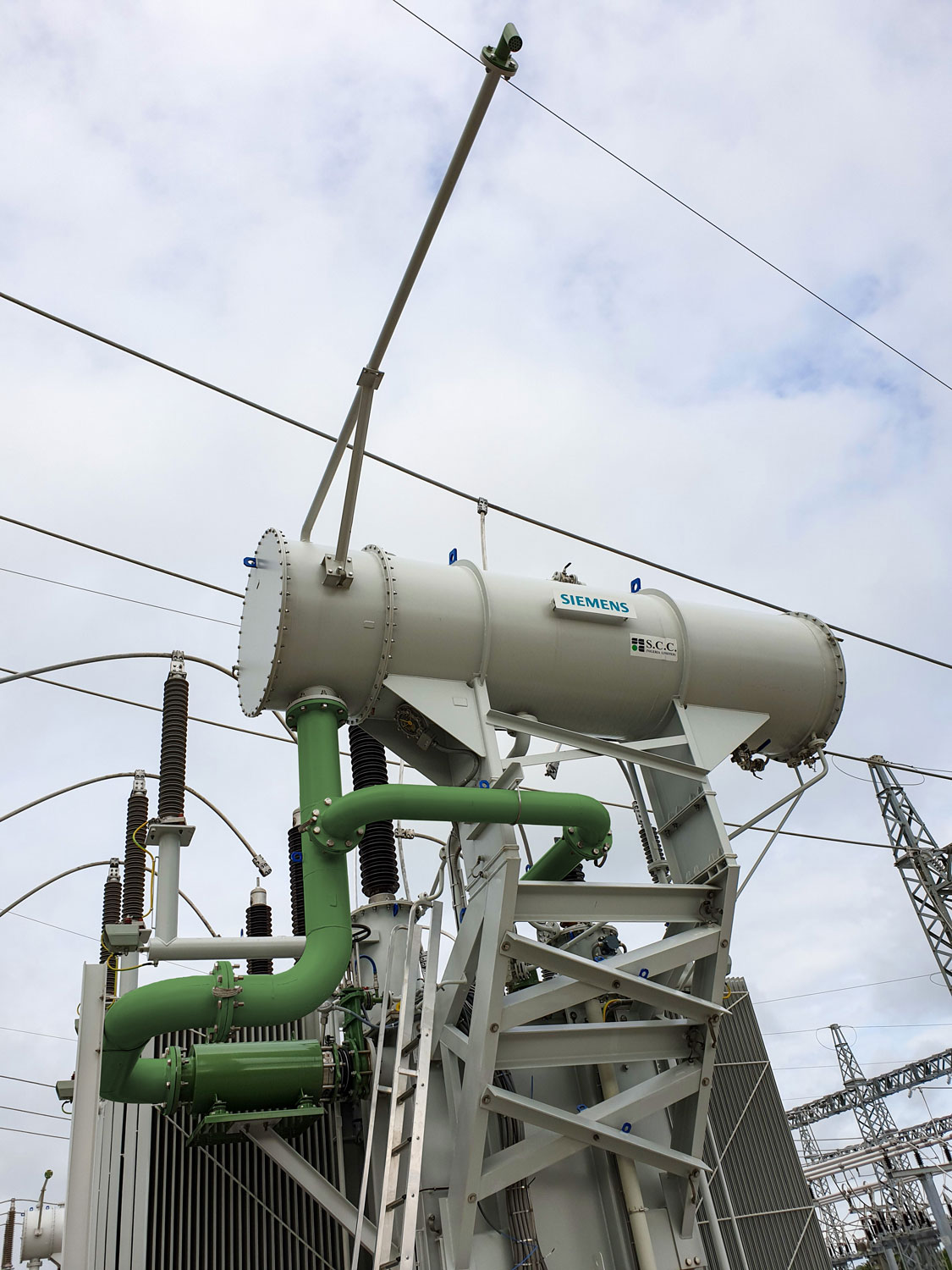

TP installed

+ 0

Countries

+ 0

TRANSFORMER PROTECTOR FEATURES

Achieves tank depressurization within milliseconds

Prevents contact between air (oxygen) and explosive and inflammable gases (e.g., Acetylene, Hydrogen, etc.)

Effectively separates gases from oil

Channels flammable gases away from the transformer to a remote area

Eliminates explosive and flammable gases trapped in the transformer by injecting an inert gas into the tank, averting the potential bazooka effect that could harm technicians during tank opening after a low impedance fault

Swiftly brings the transformer to a safe condition for repair after a short-circuit

The TRANSFORMER PROTECTOR aligns with the definition of a Fast Depressurization System according to the National Fire Protection Association (NFPA), as outlined in NFPA Recommendation 850, 2020 edition
